Northbound API

The northbound API server provides a RESTful interface for external applications to interact with the QUANT-NET control plane. It exposes endpoints for querying topology information, submitting experiments, and retrieving results. The API is designed to be intuitive and easy to use, enabling seamless integration with third-party tools and dashboards.

Running the API Server

CLI

When installed as a package (pip install quantnet-api), the qn-api console script is available:

$ qn-api --help
usage: qn-api [-h] [--host HOST] [--port PORT] [--reload]

Run the Quant-Net API

options:
  -h, --help   show this help message and exit
  --host HOST  Host to bind (default: 0.0.0.0)
  --port PORT  Port to bind (default: 8081)
  --reload     Enable auto-reload on file changes (development only)

Examples:

# Start on the default host/port (0.0.0.0:8081)
$ qn-api

# Bind to localhost on port 9000
$ qn-api --host 127.0.0.1 --port 9000

# Development mode with auto-reload
$ qn-api --reload

Alternatively, you can run the module directly with uvicorn:

$ uvicorn main:app --host 0.0.0.0 --port 8081 --reload

Docker

For containerised deployments, the qn-docker repository provides a docker-compose.yml that orchestrates the API server alongside the Controller, agents, message broker, and database in a single test stack. Refer to the qn-docker README for setup instructions.

Web Portal (Dashboard)

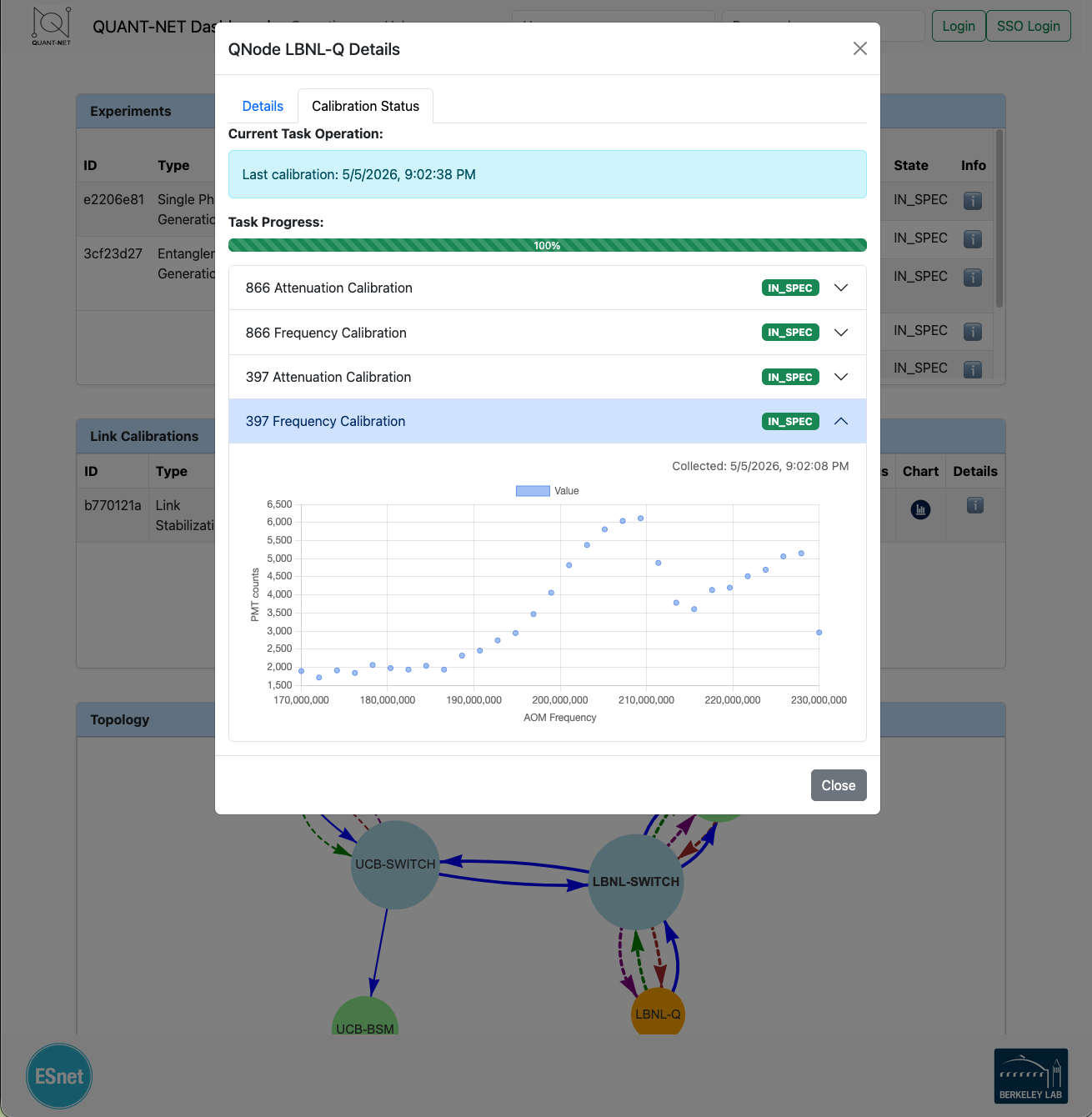

The API server includes a web dashboard for interactive exploration of the network topology, agent calibration tasks, and experiment management. The dashboard is accessible at the root URL (/) when the server is running.

Configuration File

The API server reads the same INI-style configuration file used by the Controller. The following paths are probed in order:

• $QUANTNET_HOME/etc/quantnet.cfg

• $VIRTUAL_ENV/etc/quantnet.cfg

• /opt/quantnet/etc/quantnet.cfg

If no file is found the server logs a warning and continues with built-in defaults.

Example (API-relevant sections only):

[mq]
host = 127.0.0.1
port = 1883
mongo_host = 127.0.0.1
mongo_port = 27017
ws_host = 127.0.0.1
ws_port = 8080
rpc_server_topic = quantnet/rpc/server
rpc_client_topic = quantnet/rpc/client

[schemas]
path = /opt/qn-plugins/schema

[main]
request_types = ["spgRequest", "egpRequest", "bsmRequest"]

[mq]

host

Type:

string

Default:

127.0.0.1

The MQTT broker host used for RPC communication with the Controller.

port

Type:

string

Default:

1883

The MQTT broker port.

mongo_host

Type:

string

Default:

127.0.0.1

The MongoDB host used by the message bus layer.

mongo_port

Type:

string

Default:

27017

The MongoDB port used by the message bus layer.

ws_host

Type:

string

Default:

127.0.0.1

The WebSocket host exposed to the web dashboard for live updates.

ws_port

Type:

string

Default:

8080

The WebSocket port exposed to the web dashboard.

rpc_server_topic

Type:

string

The MQTT topic the Controller listens on for RPC requests.

rpc_client_topic

Type:

string

The MQTT topic the API subscribes to for RPC responses.

path

Type:

string

Optional filesystem path used by the message bus layer.

[schemas]

path

Type:

string

Path to a directory of YAML schemas conforming to the Message Bus spec. When set, schemas are loaded at startup so the RPC client can validate messages.

[main]

request_types

Type:

list

Default:

["spgRequest", "egpRequest", "bsmRequest"]

The experiment request types surfaced in the web dashboard’s request submission form.

FastAPI Application

The application is defined in main.py and assembled from the components described below.

Router & Endpoints

All REST endpoints are grouped under the /api prefix via a dedicated APIRouter. The table below summarises the available routes:

Method	Path	Description
GET	/api/topology	Retrieve the network topology graph. Pass ?full=true for complete node definitions including channel data.
GET	/api/node	List all nodes in the network.
GET	/api/node/{ID}	Get information for a specific node by its identifier.
GET	/api/experiments	List all experiments. Supports ?last=true, ?request=true, and ?agent_id=<id> query parameters.
GET	/api/experiments/{expid}	Get a specific experiment by ID.
GET	/api/calibration	List all calibrations. Supports ?last=true.
GET	/api/calibration/{calid}	Get a specific calibration by ID.
GET	/api/tasks	Get agent task results. Supports ?agent_id=<id>.
POST	/api/pingpong	Send ping requests to a list of remote nodes. Parameters: remotes (list), iterations (int, default 5).
POST	/api/calibrate	Run a calibration process. Parameters: type, src, dst, power, light.
POST	/api/bsm	Start a BSM experiment. Parameters: src (list), rate (float), duration (float).
POST	/api/spg	Start a single-photon generation experiment. Parameters: src (list), rate (float), duration (float).
POST	/api/egp	Start an entanglement generation experiment. Parameters: src, dst, pairs, bellState, fidelity.

Interactive API documentation is auto-generated by FastAPI and available at /docs (Swagger UI) and /redoc (ReDoc) when the server is running.

Error Handling

Every endpoint delegates to a centralised _rpc_request helper that wraps the underlying RPC call with uniform error handling:

• 504 Gateway Timeout — returned when the Controller does not respond within the RPC timeout window (default 10 s).

• 502 Bad Gateway — returned for any other communication failure with the Controller.

Both responses include a JSON body with error and detail fields.

OpenAPI Schema

A custom OpenAPI schema is generated at startup with the title Quant-Net API. The interactive documentation is served at:

• /docs — Swagger UI

• /redoc — ReDoc
